Copral

Insulated Aluminium Conductors


Product

Specification - Ranges / Types

Standard

Enamelled Round Wires
Size :1.0mm - 4.00 mm

Class :F, H, Dual Coat

Covering Thickness :G1, G2, G3
IS 13730, IEC 60317

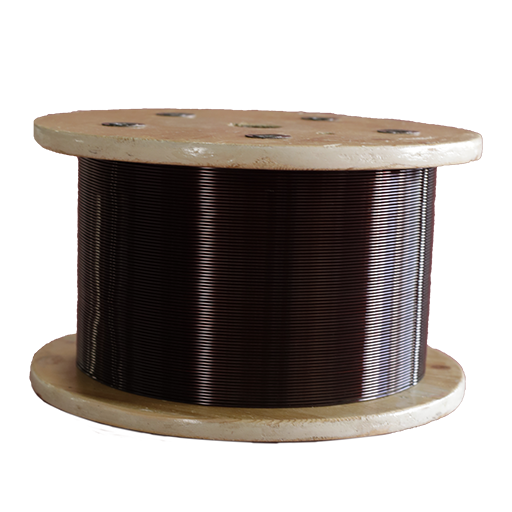

Enamelled Rectangular Strips
Size : 10 to 75 Sq mm

Width :4 to 18 mm I Thickness: 2 to 5 mm

Class :F, H, Dual Coat

Covering Thickness :G1, G2
IS 13730, IEC 60317

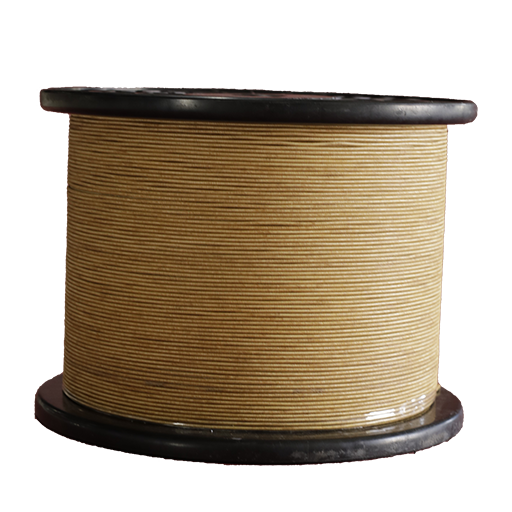

Fiber Glass Covered Rectangular Strips
Size :6 to 75 Sq mm

Type :Single Covering, Double Covering

Covering Thickness :G1, G2
IS 13730, IEC 60317

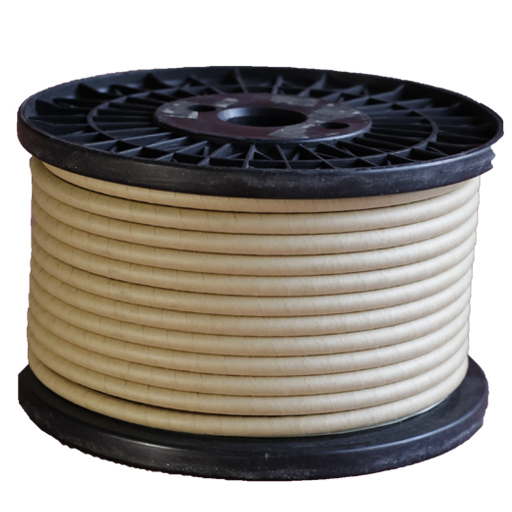

Paper Insulated Aluminium Conductor
Size :6 to 75 Sq mm

Width :4 to 15 mm I Thickness: 1.5 to 5 mm
IS 13730, IS 616, IEC 60317

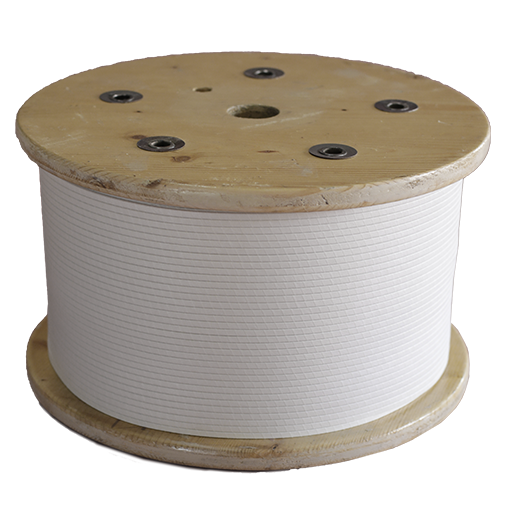

Nomex Covered Wires & Strips
Size :6 to 75 Sq mm

Covering :Single, Double, Multi Paper

Special Type :Interlocking
IS11174
Other Products as per Customer Specification
Enamel + FiberGlass

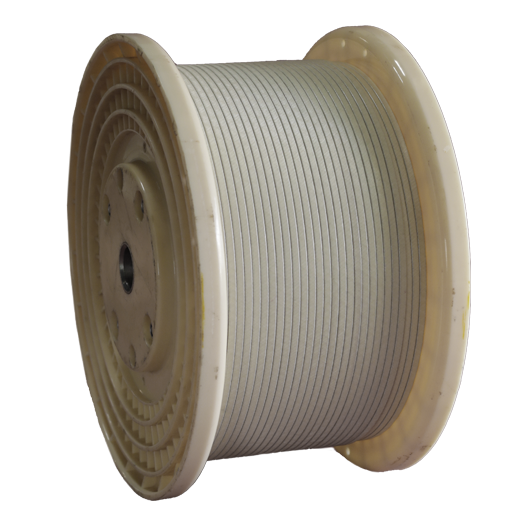

Polyfilm + FiberGlass

Enamel + Polyfilm + FiberGlass
