Insulated Copper Conductors

Insulated Copper Conductors

Product
Specification - Ranges / Types
Standard

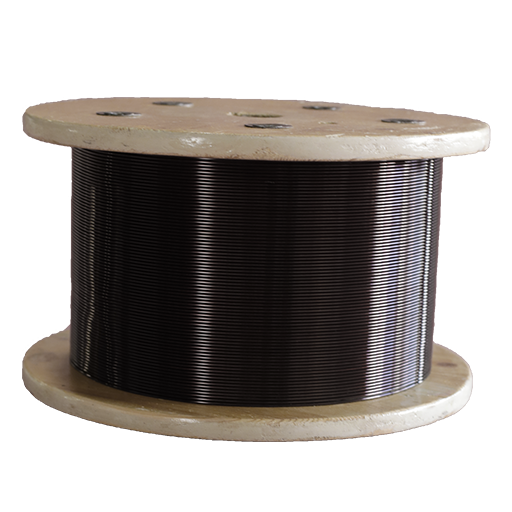

  • Enamelled Round Wires
    Size :0.50 - 4.00 mm Dia
    Class :B, F, H, Dual Coat
    Covering Thickness :G1, G2, G3
     IS 13730, IEC 60317

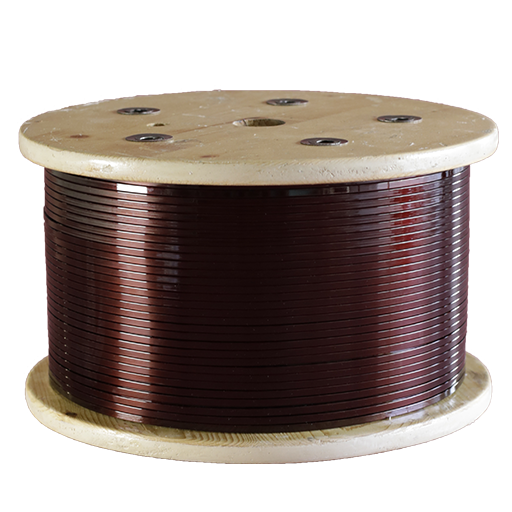

  • Enamelled Rectangular Strips
    Size :6 to 75 Sq mm
    Width :3 to 18 mm Thickness: 1 to 4 mm
    Class :B, F, H, Dual Coat
    Covering Thickness :G1, G2
     IS 13730, IEC 60317

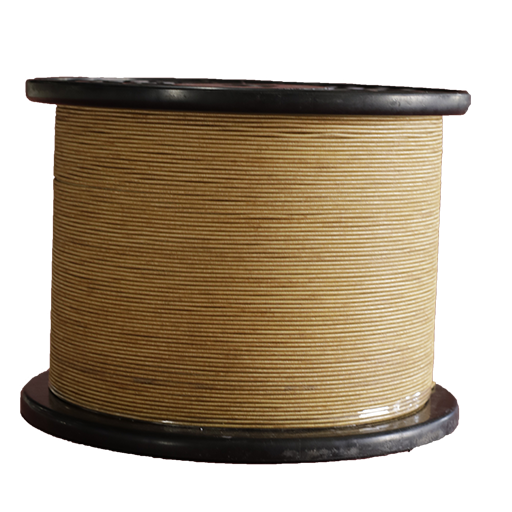

  • Fiber Glass Covered Wires & Rectangular Strips
    Size :6 to 75 Sq mm
    Width :3 to 18 mm Thickness: 1 to 5 mm
    Wire :1 to 4mm Dia
    Covering Thickness :G1, G2
     IS 13730, IEC 60317

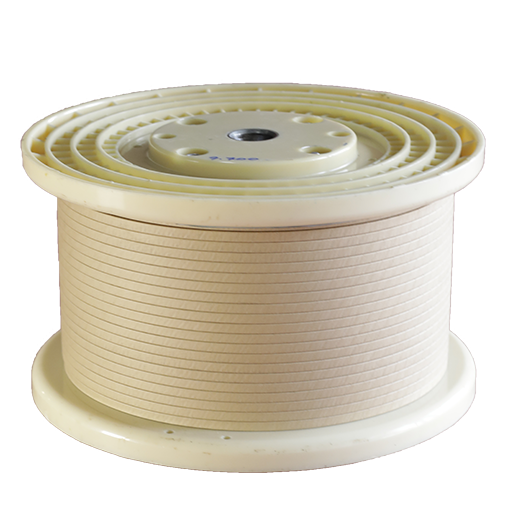

  • Paper Insulated Copper Conductors
    Size :6 to 75 Sq mm
    Width :4 to 15 mm Thickness: 1.5 to 5 mm
    Wire :0.8 to 4 mm Dia
    No of Papers :Double Paper, Triple Paper, Multi Paper
    Paper Type :Kraft, Thermally upgraded, Crepe
    Special Type :Bunched Conductors
     IS 7404, IS 13730, IEC 60317, IS 9335

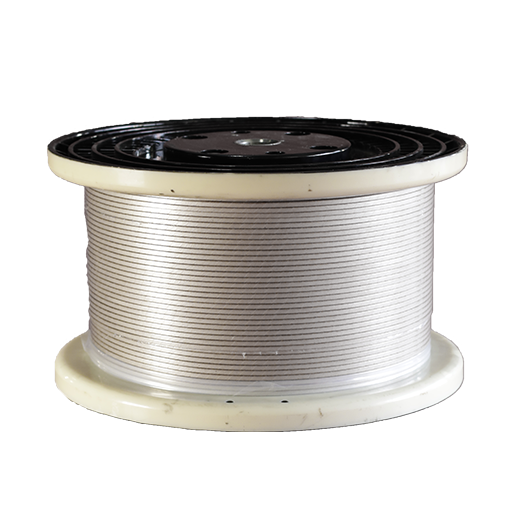

  • Mica Tape Covered Strips
    Size :6 to 75 Sq mm
    Mica Tapes :Cogebi, Isovolta, Kremica, Lakshman Isola
    Lapping :-0.3mm to 10 mm
    Staggering :25% to 66% Visual monitoring system

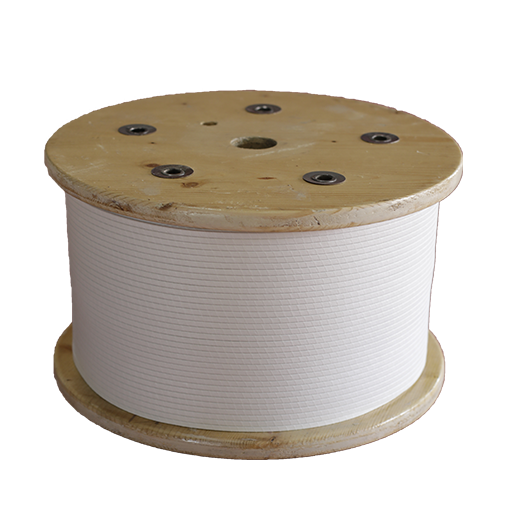

  • Nomex Covered Wires & Strips
    Size :6 to 75 Sq mm
    Covering :Single, Double, Multi Paper
    Special Type :Interlocking
    IS 11174

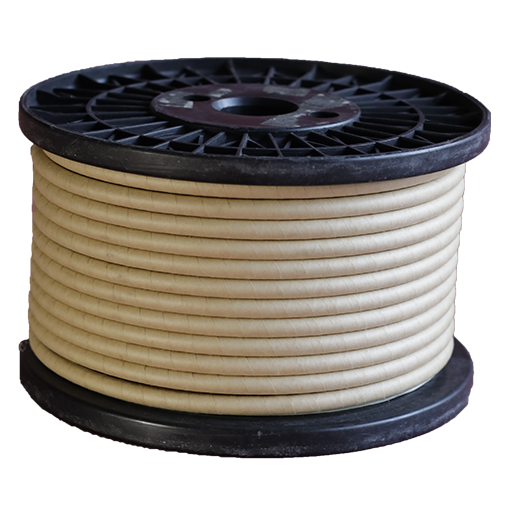

  • Multi Strand Multi Paper Covered Wires
    Wire Size :0.5mm to 3 mm
    Strands :1 to 61
    Covering Thickness :0.5 mm to 12 mm
  • Special Insulation Winding Wires
    Daglass
    Polyfilm + Mica Tape
    Polyfilm + Fiber Glass
    Enamel + Fiber Glass
    Enamel + Polyfilm + Mica Tape
    Enamel + Polyfilm + Fiber glass
    Mica Tape + Fiber Glass Tape
